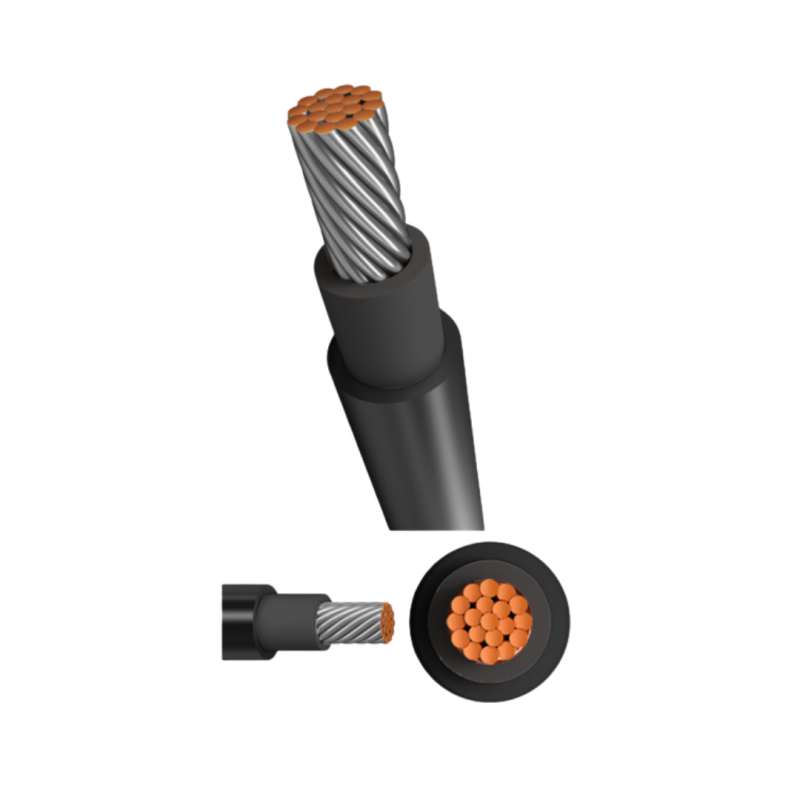

H1Z2Z2-K SOLAR CABLE
- Product Code: H1Z2Z2-K
SMI H1Z2Z2-K is a solar cable, TÜV and EN certified, specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Highly flexible cable, compatible with all major connectors. Suitable for all kind of photovoltaic systems, panels mounted on roofs of building and extended solar power plants. This cable can withstand damp conditions including total immersion in water (AD7).
Standards
EN 50618/TUV 2Pfg 1169/08.07/ IEC62930
Conductor
Tinned copper, class 5 acc. To EN 60288-7 and IEC 60228
Insulation
Halogen free, cross link polyolefin
Outer Sheath
Halogen free, cross link polyolefin, oil and UV resistance
Sheath Color
Red, black
Operating Temperature
-40°C to 90°C
Max. Temperature (service)
125°C
Max. Temperature (short-circuit)
250°C
Estimated Lifetime
≥ 25 years
Nominal Voltage Uo/U
1,0/1,0 kV (AC) 1,5/1,5Kv (DC)
Test Voltage
6500V
Min. Bending Radius
5 x Ø
| Conductor | Tinned copper, class 5 acc. To EN 60288-7 and IEC 60228 |
| Test Voltage | 6500V |
| Standards | EN 50618/TUV 2Pfg 1169/08.07/ IEC62930 |
| Min. Bending Radius | 5 x Ø |
| Insulation | Halogen free, cross link polyolefin |
| Outer Sheath | Halogen free, cross link polyolefin, oil and UV resistance |
| Sheath Color | Red, black |
| Operating Temperature | -40°C to 90°C |
| Max. Temperature (short-circuit) | 250°C |
| Nominal Voltage Uo/U | 1,0/1,0 kV (AC) 1,5/1,5Kv (DC) |
| Estimated Lifetime | ≥ 25 years |
| Max. Temperature (service) | 125°C |
