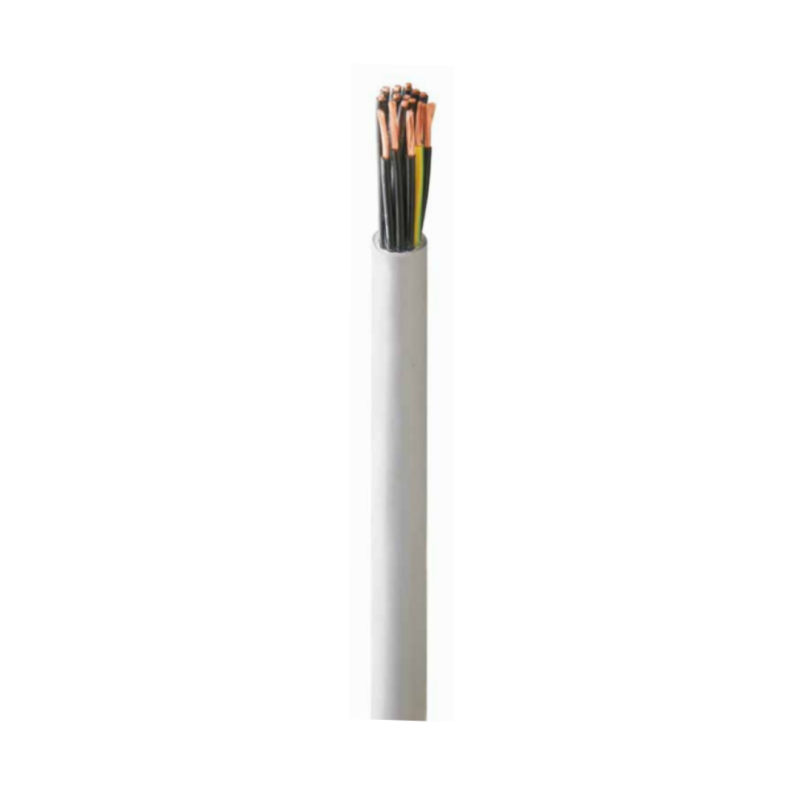

YSLY-OZ/JZ CONTROL CABLE
- Product Code: YSLY - OZ/JZ/JB
For signaling, power station, air condioning systems, refrigeration plants, conveyors belts, machine industries & production line. Cable is resistant to UV and can be used outdoors under sunlight.
Conductor
Plaim Annealed Copper Wire Class 5 IEC 228 - BS 6360
Insulation
Polyvinyl Chloride Lead Free(PVC 80°C RoHS)
Core Identification
OZ: black with numbering
JZ: black with numbering & yellow with green stripe as protective conductor
JB: coloured core in accord. to VDE 0293
Filler
PP Yarn or PVC Filler (Optional)
Outer Shealth
Polyvinyl chloride lead free (PVC 80°C UV Resistant), Grey
Cable Marking
Ex : SMI Cable YSLY-JZ 3G X 0.5 MMSQ 300/500V = LENGTH MARKING
Flame Retardant
IEC 603
Flame Propagation
IEC 60332-3 cat.C
| Nominal Voltage | 300/500V |
| Insulation Resistance | At 20°C 20 MOhm/km |
| Test Voltage | 4000V 5 min |
| Spark Test | 5000V |
| Min. Bending Radius | 5 x O.D (Fixed) | 10 x O.D (Mobile) |
| Temperature Rating | 80°C |
