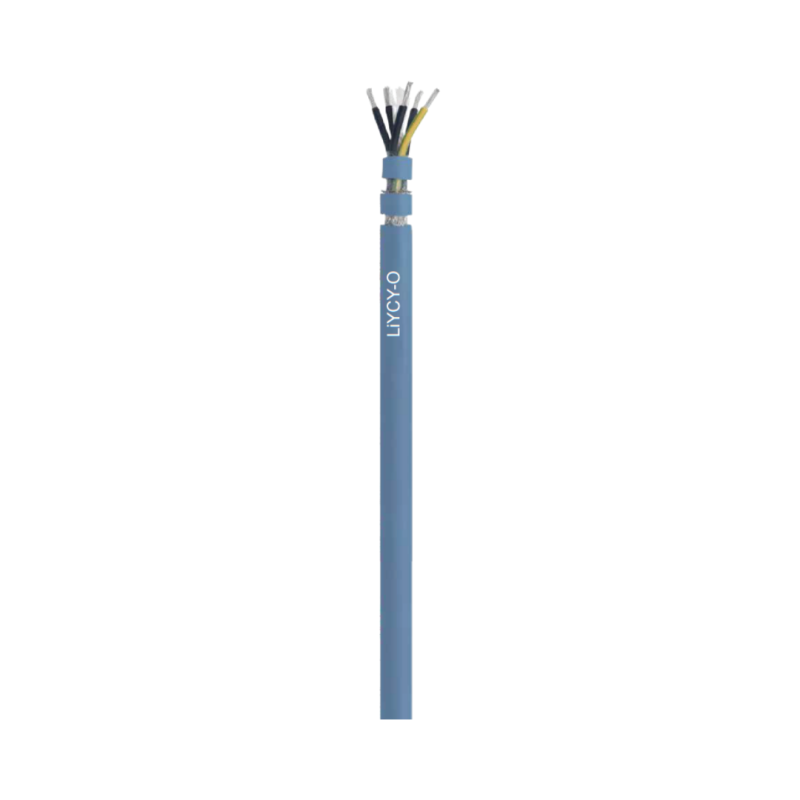

LiYCY-OZ/JZ SCREEN CABLE
- Product Code: LIYCY-O
For signaling, power station, air condioning systems, refrigeration plants, conveyors belts, machine industries & production line. Copper screening ensuresprotection from interferrence and disturbancefree transmission of signal and impulse. Cable is resistant to UV and can be used outdoors under sunlight.
Conductor
Plaim Annealed Copper Wire Class 5 IEC 228 - BS 6360
Insulation
Polyvinyl Chloride Lead Free (PVC 80°C RoHS)
Core Identification
Colours as per DIN 47100
Filler
PP Yarn or PVC Filler (Optional)
Wrapping
Covered as helically by polyester tape
Screen
Braided tin copper wire, approx. 80% coverage
Outer Sheath
Polyvinyl chloride lead free (PVC 80°C UV Resistant), Grey
Flame Retardant
IEC 60332-1
Flame Propagation
IEC 60332-3 cat.C
| Nominal Voltage | 300/500V |
| Insulation Resistance | At 20°C 20 MOhm/km |
| Test Voltage | 4000V 5 min |
| UV Resistant | UV Resistant |
| Spark Test | 5000V |
| Min. Bending Radius | 5 x O.D (Fixed) | 10 x O.D (Mobile) |
| Temperature Rating | 80°C |
