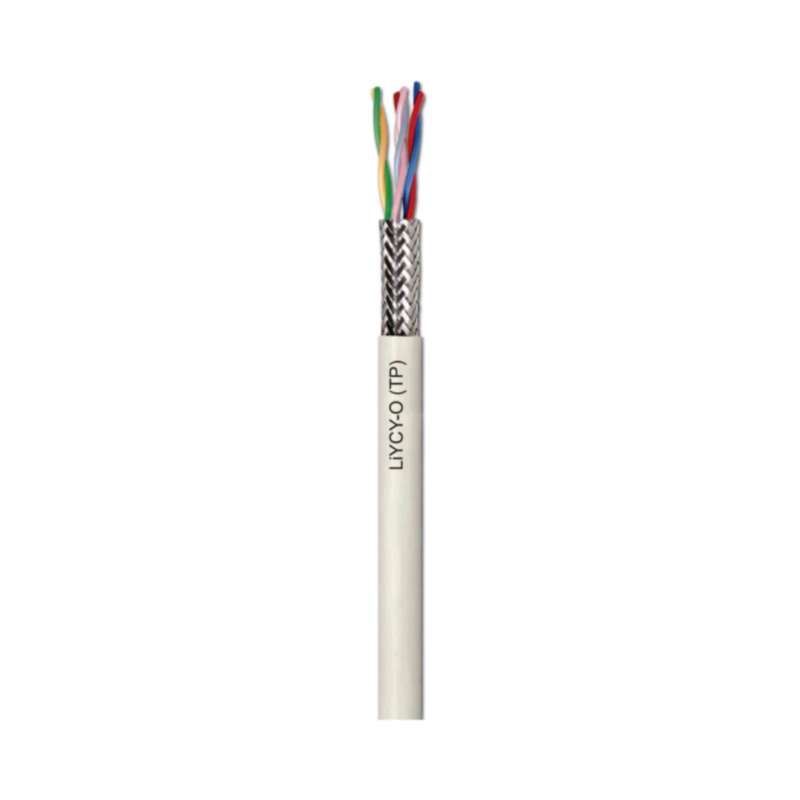

LiYCY-O(TP) TWISTED PAIR SCREEN CABLE
- Product Code: LIYCY-O
Data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology for loss-less transmission of data and signals. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.
Conductor
Plain Annealed Copper Wire Class 5 IEC 228-BS 6360
Insulation
Insulation Polyvinyl Chloride Lead Free (PVC 80°C RoHS)
Core Identification
Colours as per DIN 47100
Filler
PP Yarn or PVC Filler (Optional)
Wrapping
Covered as helically by polyester tape
Screen
Braided tin copper wire, approx. 80% coverage
Outer Sheath
Polyvinyl chloride lead free (PVC 80°C UV Resistant), Grey
Flame Retardant
IEC 60332-1
Flame Propagation
IEC 60332-3 Cat.C
| Nominal Voltage | 300/500V |
| Insulation Resistance | At 20°C 20 MOhm/km |
| Test Voltage | 4000V 5 min |
| UV Resistant | UV Resistant |
| Spark Test | 5000V |
| Min. Bending Radius | 5 x O.D (Fixed) | 10 x O.D (Mobile) |
| Temperature Rating | 80°C |
