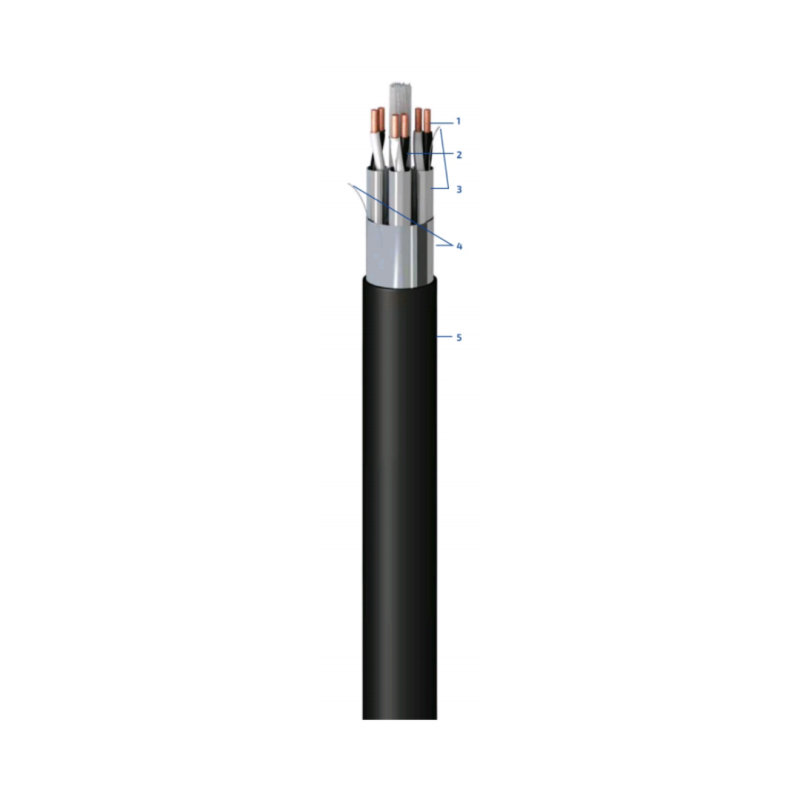

RE-2X(ST)Y-FL PimF NON-ARMOURED INDIVIDUAL SCREEN
- Product Code: RE-2X(ST)Y-FL PimF
Screened cable for data transmission between industrial equipment. The overall screen and individual (per pair) make them especially suitable for their use in high electromagnetic noise environments.
Conductor Electrolytic copper, class 2 based on IEC 60228. Cross section 0,75 mm², 1,0 mm², 1,5 mm²
Insulation XLPE Core identification
Pair
Black & White Each unit numbered. (Others Colours available on request)
Cabling
Stranded Conductors in pairs.
Individual Screen
Individual polyester (per pair) composed by on aluminum/polyester tape with 100% coverage tinned copper drain wire.
Assembly of Cores
Cabled in concentric layers.
Overall Screen
Aluminum/polyester tape with 100% coverage tinned copper drain wire.
Outer Sheath
PVC flame retardant sheath, black color. Blue for IS. (upon request)
| Applications | Industrial use |
| Approvals | RoHS |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage:500V -Test Voltage :AC 2000V |
| Based On | EN 50288-7 |
| Fire Performance | -Flame non-propagation base on IEC 60332-1 -Fire non-propagation base on IEC 60332-3-24 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -UV Resistance -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
