PROFINET
- Product Code: Profinet Cable-Type A

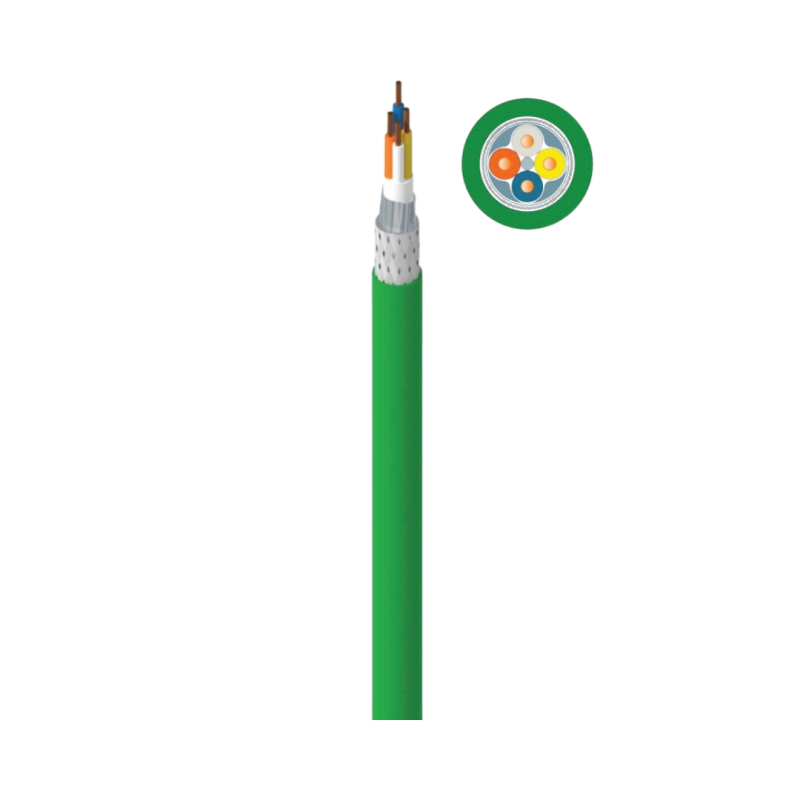

Profinet CAT5e cable for indoor industrial ethernel applications compliant with Fast connect equipment
Specification
Inner Conductor
Bare Copper
Insulation
PE
Insulation Color
White, Orange, Blue, Yellow
Foil Sheild
AL-PET>110%
Braiding Shield
Tinned Copper 112 x 0.12±0.20mm
Braiding Coverage
80%
Jacket
PVC
Jacket Color
Green RAL 6018
Electrical Performance (20°C)
Nominal Mutual Capacitance
56nF/km
Conductor DC Resistance
≤62Ω/km
Delay skew
≤20ns/100m
Mean characteristic impedance @ 100MHz
10Ω ±5
Transfer impedance at 10 MHz)
$10m0/m
Coupling attenuation
from 30MHz to 1000MHz ≥80dB
Maximum installation tension
135N
| Applications | -For PROFINET system, Industrial Ethernet & ICT network application |
| Approvals | -RoHS -REACH |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Rated Voltage: 125V -Test Voltage :AC 2000V |
| Based On | -IEC 61156 -IEC/ISO 11801 -TIA-568-C2:2009 |
| Fire Performance | -Flame non-propagation base on IEC60332-1 -Fire non-propagation base on IEC 60332-3-24 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
