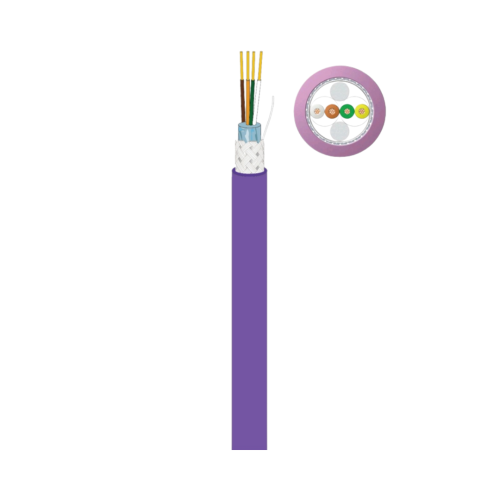

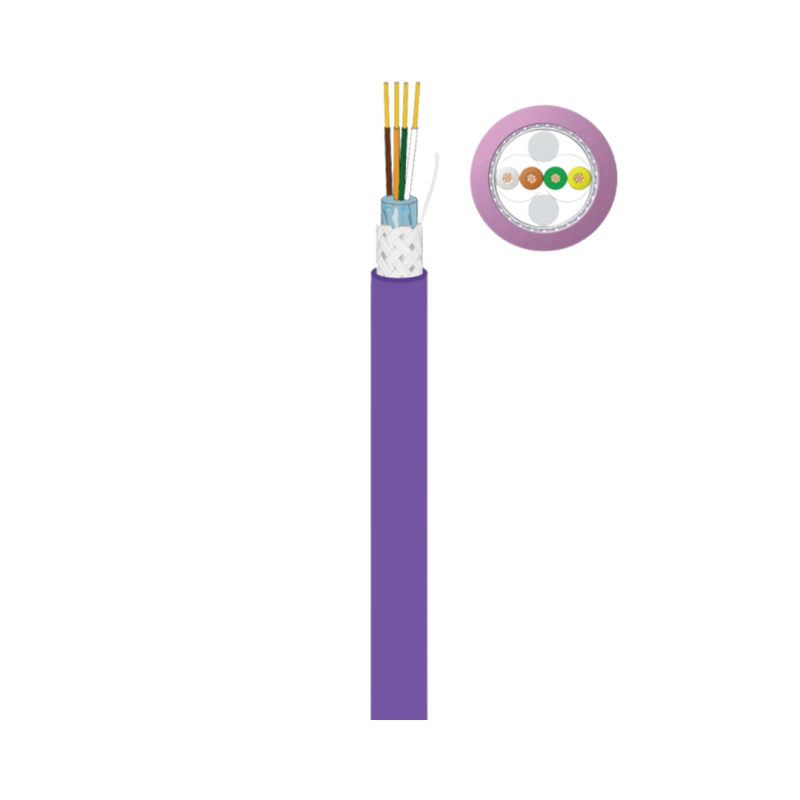

CANBUS
- Product Code: CANBUS RS485 2 X 2 X 22AWG
Cable incorporates low capacitance insulation with one of the highest levels of screening to provide high speed, Interference free, data transmission for RS485 data connection
Specification
Inner Conductor
Bare Copper
Insulation
PVC
Insulation Color
White/Brown, Green/Yellow
Filler Material
PE Strip
Foil Sheild
AL-PET>110%
Braiding Shield
Tinned Copper 96 x 0.12±0.008
Coverage
≥60%
Jacket
PVC
Jacket Color
Violet RAL 4001
Electrical Performance (20°C)
Voltage Rating
300 V
Test Voltage (50Hz, 1min)
AC 2000V
Mutual Capacitance(nominal) C-C
40 pF/m
Impedence
120Ω
Conductor Loop Resistance @ 20°C
≤530Ω/km
Min Bending Radius
7.5 Cable diameter
| Applications | -Fieldbus cable for CAN (Controller Area Network) system Foundation |
| Approvals | -RoHS |
| Thermal Performance | -Maximum services temperature: 80°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage : 300V -Test Voltage: AC 2000V |
| Based On | -ISO 11898 |
| Fire Performance | -Flame non-propagation base on IEC60332-1 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
