FIELDBUS

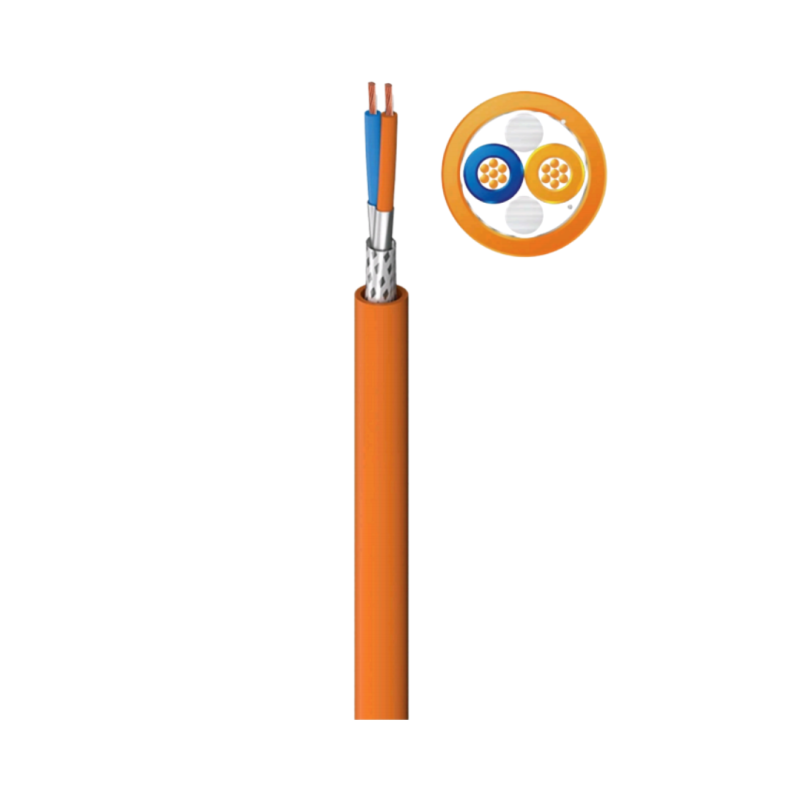

- Product Code: FIELDBUS 1 X 2 X AWG 18
For Fieldbus Foundation for data transmission with additional power supply for the devices acc. To IEC 61158-2
Specification
Inner Conductor
Bare Copper
Insulation
XLPE
Insulation Color
Blue, Orange
Filler Material
PE Strip
Foil Sheild
AL-PET>110%
Braiding Shield
Tinned Copper 96 x 0.12±0.008
Coverage
≥60%
Jacket
PVC
Jacket Color
Orange, Blue or Black
Electrical Performance (20°C)
Voltage Rating
300 V
Test Voltage (50Hz, 1min)
AC 2000V
Mutual Capacitance(max.)
60 nF/Km
Impedence
100 ± 120Ω @31.25kHz
Conductor Loop Resistance (max.)
43.6Ω/km
Min Bending Radius
7.5 x Cable diameter
Atternuation(max.)
30dB/Km @39kHz
| Applications | -Fieldbus cable, Type A for Fieldbus Foundation асс. To IEC 61158-2 |
| Approvals | -RoHS |
| Thermal Performance | -Maximum services temperature: 90°C -Minimum services temperature: -20°C |
| Electrical Performance | -Low Voltage: 300V -Test Voltage :AC 2000V |
| Based On | -EN 50288-7 -IEC 61158-2 |
| Fire Performance | -Flame non-propagation base on IEC60332-1 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
