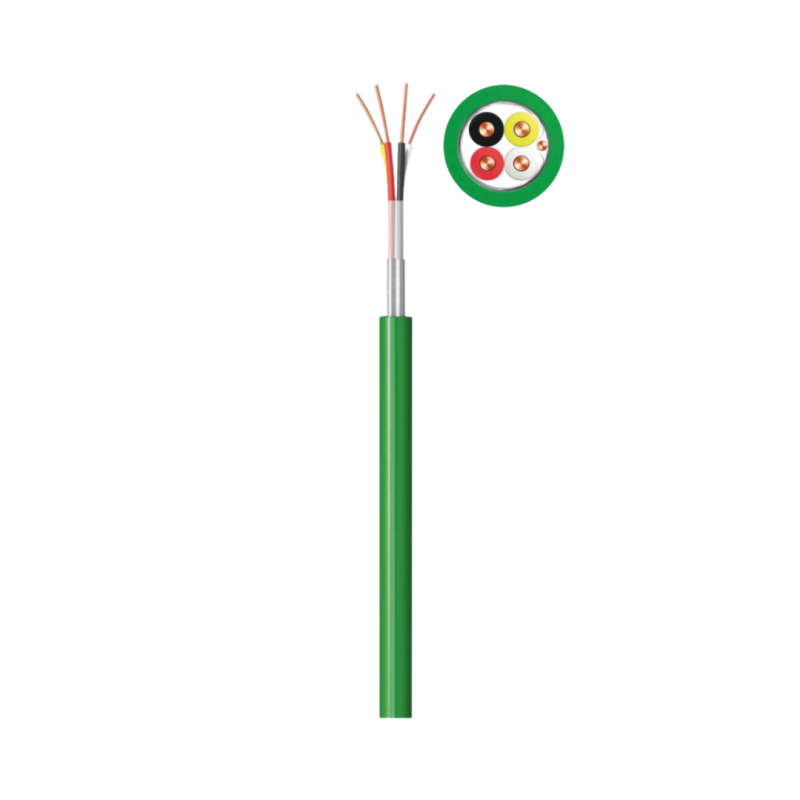

EIB BUS
- Product Code: EIB BUS 2 X 2 X 0.80MM LSZH
For use in bus system (EIB-European Installation Bus) and as ICA cable in power installations, Laying in/on plaster, even in moist and wet room. Not approved for power and underground installation,
Specification
Inner Conductor Bare Copper
Insulation
LSZH
Insulation Color
White/Red, Black/Yellow
Foil Sheild
AL-PET>110%
Jacket
LSZH
Jacket Thickness
1.0mm
Jacket Color
Green
Electrical Performance (20°C)
Voltage Rating
300 V
Test Voltage (50Hz, 1min)
AC 1000V
Mutual Capacitance max.
100 nF/km
Impedence
80Ω@1Mhz
Conductor Loop Resistance @ 20°C
≤73.20Ω/km
Min Bending Radius
7.5 Cable diameter
Atternuation
≤3.5dB/100m @500Khz≤4.2dB/100m @4MHz≤20dB/100m @25MHz
| Applications | -For KNX/EIB system in the field of intelligent building automation |
| Approvals | -RoHS |
| Thermal Performance | -Maximum services temperature: 70°C -Minimum services temperature: -30°C |
| Electrical Performance | -Low Voltage: 300V -Test Voltage :AC 2000V |
| Based On | -EN 50090 -EN 60669-2-1 |
| Fire Performance | -Flame non-propagation base on IEC60332-1 |
| Mechanical Performamnce | Minimum bending radius: 7.5 x Cable diameter |
| Installation Condition | -In conduit -Open Air |
| Environmantal Performance | -Water resistance: AD5 Jets -Chemical Et Oils resistance: Good |
