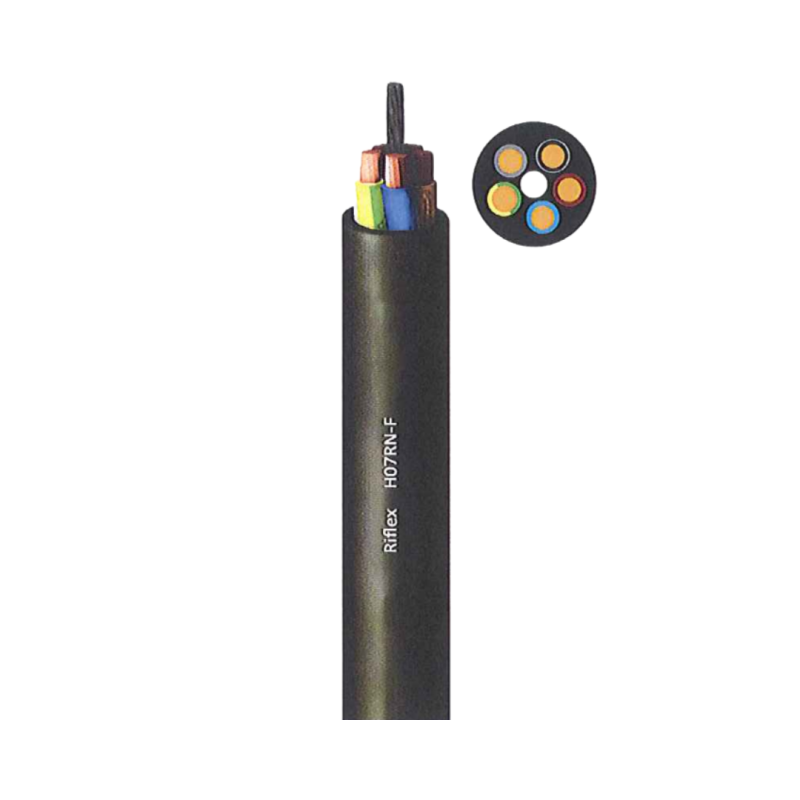

H07RN-F NEOPRENE RUBBER CABLE
- Product Code: H07RN-F
1107RN-F is a rubber flexible power cable specifically designed to operate in tough weather conditions and under high mechanical and thermal stresses. The hard-wearing 1107RN-F eable is made up of class 5 flexible plain copper conductors, EPR (Ethylene Propylene Rubber) insulation and a black CPE sheath. With its oil, grease and water resistant sheath, 1107RN-F cable is suitable for use in a whole range of different applications, including handling equipment, mobile power supplies and stage and audio visual equipment.
Conductor
Electrolytic copper, class 5 or 6 (flexible), based on EN 60228
Insulation
Thermosetting rubber (type El4).
1X ----- Natural
2X ----- Brown Blue
3G ----- Brown Blue Yellow/green.
4G ----- Brown Black Grey Yellow/green
5G ----- Brown Black Grey Blue Yellow/green
6G or more ----- Black numbered Yellow/Green
Outer sheath
Themosetting rubber (type EM2). Black colour. Packaging.
Available in rolls and coils
| Min. Bending Radius | 5 ~ 6 Cable Diameter |
| Max. Temperature (short-circuit) | 250°C (Max.5 s) |
| Flexible conductor | Class 5/6 |
| Minimum service temperature | -40°C(Fixed) |
| Meter by meter marking | Yes |
| Flame non-propagation | Yes |
| Outdoor installation | Yes |
| Chemical & Oil resistance | Yes |
| Abrasion resistance | Yes |
| Industrial use | Yes |
| Heavy mobile use | Yes |
| Max. Temperature (service) | 60°C |
