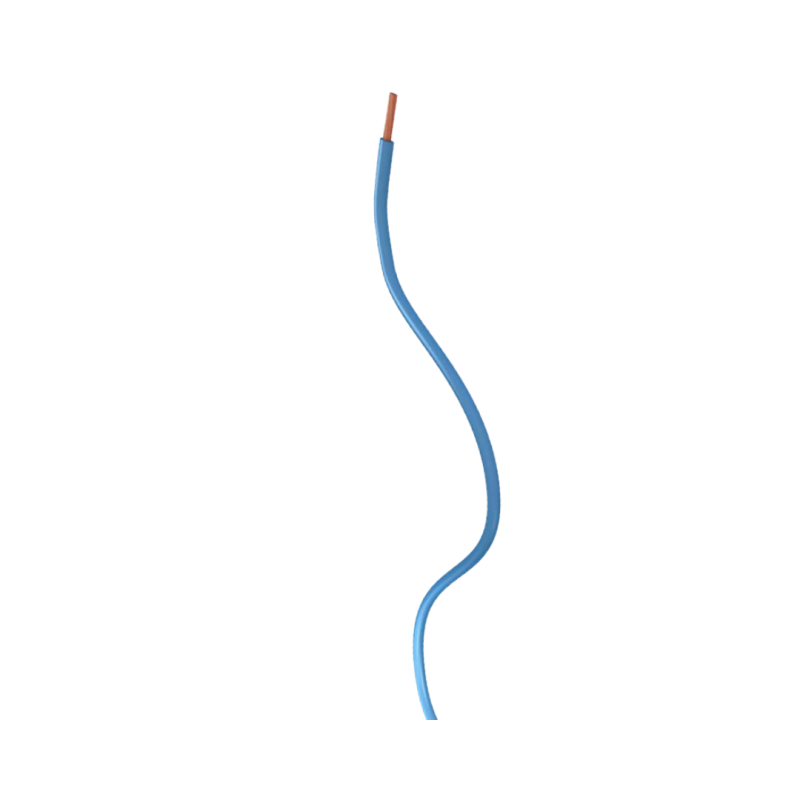

H05V-K & H07V-K SINGLE LAYER CABLE
- Product Code: H05V-K & H07V-K
Topfex H05V-K & H07V-K cable has been specially designed for installations that re quire a fexible cable due to the complex nature of their layout. This cable is specially suitable for domestic wiring. It may also be used for equipment wiring, distributors, cabinets and lighting. It is also recommended for installation under false ceilings. Ca bles with cross section up to 1 mm2 are especially suited for signalling and monitoring installations.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Extra sliding PVC.
The standard identification of insulated conductors is the following:
Blue RAL 5015
Brown RAL 8003
Black RAL 9005
Red RAL 3000
Green/yellow RAL 1021 / RAL 6018
Grey RAL 7000
Dark Blue RAL 5003
White RAL 9010
Orange RAL 2003
Violet RAL 4005
Other colours available on request
| Standards | EN 50525-2-31 / IEC 60227-3 |
| Meter by meter marking | from 10 mm2 onwards |
| Water resistance | Water resistance: AD3 Sprays. |
| Applications | -Electrical panel wiring -Domestic use. |
| Approvals | -CE -SEC -HAR -AENOR -SASO -RoHS |
| Thermal Performance | Maximum service temperature: 70ºC. Maximum short-circuit temperature: 160ºC (max. 5 s). Minimum service temperature: -40ºC (fxed and protected installations) |
| Electrical Performance | LOW VOLTAGE 300/500 V · 450/750 V Rated Voltage: H05V-K (up to 1 mm2): 300/500 V. H07V-K (from 1,5 mm2 onwards): 450/750 V.” |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1. Reaction to fre CPR: Eca according to 50575. |
| Mechanical Performamnce | Minimum bending radius: x5 cable diameter |
| Installation Condition | In conduit. |
| Chemical performance | Chemical & Oil resistance: Acceptable |
