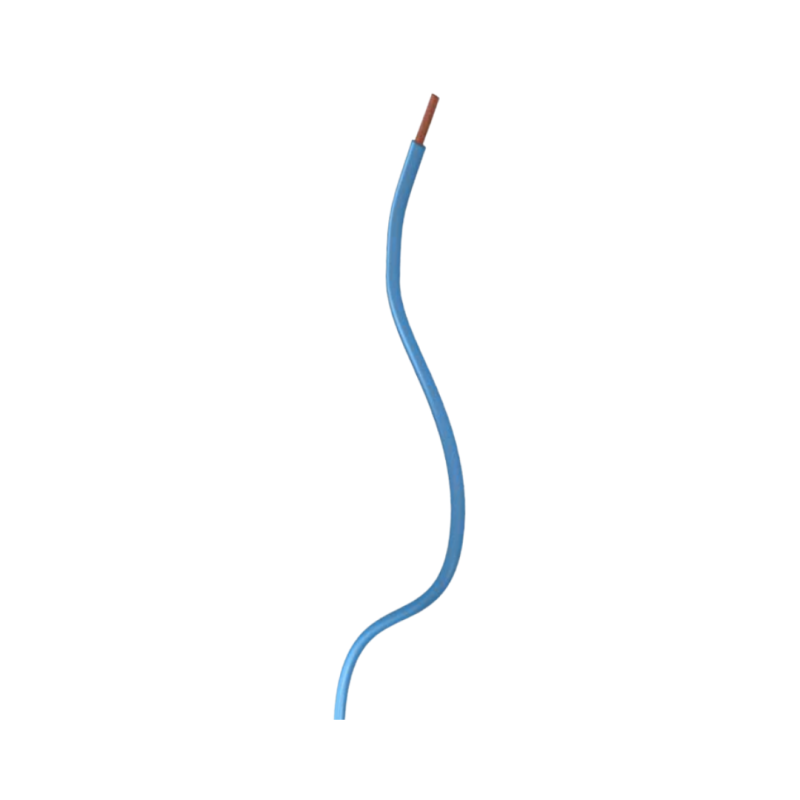

H07Z1-K HALOGEN-FREE SINGLE LAYER CABLE
- Product Code: H07Z1-K(AS)
Toxfree ES05Z1-K & H07Z1-K is a LSZH safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Extra sliding low smoke zero halogen (LSZH) polyolefin insulation.
The standard identification of insulated conductors is the following:
Blue RAL 5015
Brown RAL 8003
Black RAL 9005
Red RAL 3000
Green/yellow RAL 1021 / RAL 6018
Grey RAL 7000
Dark Blue RAL 5003
White RAL 9010
Orange RAL 2003
Violet RAL 4005
Other colours available on request
| Standards | UNE-EN 50525-3-31 / UNE 211002 / UL 1581 |
| Meter by meter marking | from 10 mm2 onwards |
| Water resistance | Water resistance: AD3 Sprays. |
| Applications | -Domestic use. -Electrical panel wiring. -Public places. |
| Thermal Performance | Maximum service temperature: 90ºC (UL 1581) / 70ºC (EN 50525-3-31). Maximum short-circuit temperature: 160ºC (max. 5 s). Minimum service temperature: -40ºC (fixed and protected installations). |
| Electrical Performance | LOW VOLTAGE 300/500 V · 450/750 V · UL 600 V |
| Fire Performance | Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1. -Fire non-propagation based on UNE-EN 60332-3 and -IEC 60332-3. -LSZH (Low Smoke Zero Halogen) based on UNE-EN -60754-1 and IEC 60754-1. -Low smoke emission based on UNE-EN 61034 and IEC -61034: Light transmittance > 60% -Low corrosive gases emission based on UNE-EN -60754-2 and IEC 60754-2 |
| Mechanical Performamnce | Minimum bending radius: x5 cable diameter |
| Installation Condition | In conduit. |
| Chemical performance | Chemical & Oil resistance: Acceptable |
