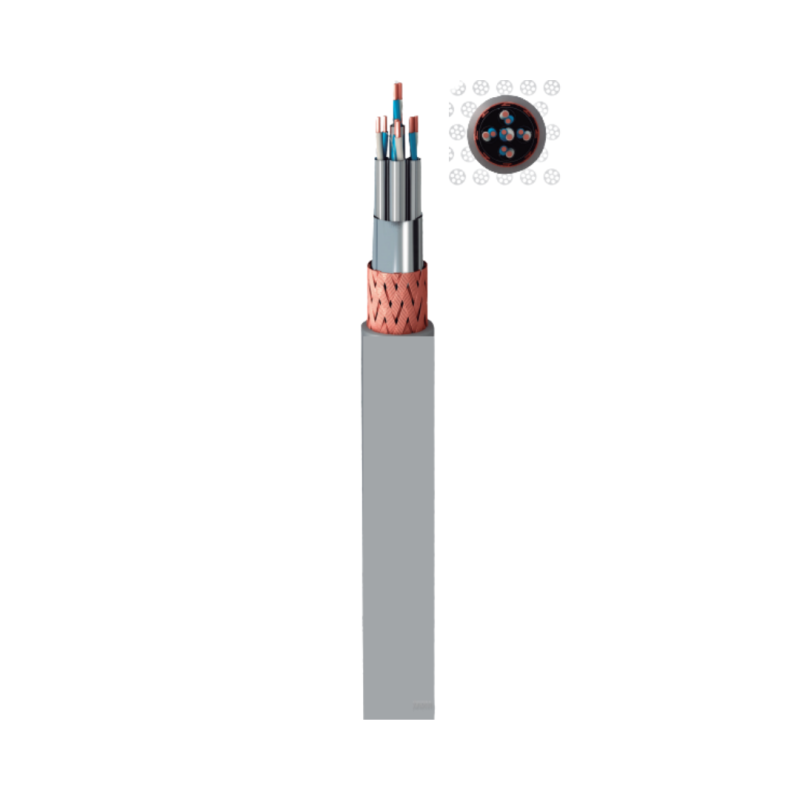

XOxTCuZ1-K(AS) MARINE ARMOURED INSTRUMENTATION CABLE
- Product Code: XOxTCuZ1-K (AS)
The Toxfree Marine XOxTCuZ1-K (AS) cable with zero halogens is a high security instrumentation cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation
LSZH XLPE 90ºC.The standard identification is the following per pair:
1 x ...................................... Blue
1x ...................................... White
Each pair is numbered
Screen
Individual and/or collective aluminium / polyester tape with tinned copper drain wire
01 ... Individual screen (per pair)
02 … Overall screen (per cable)
03 ... Individual and overal screen
Armour bedding
Polyester tape.
Armour
Copper braid screen.
Outer sheath
LSZH polyolephine outer sheath SHF1 type. Grey colour, non-toxic and fire retardant.
Fire resistant version also available.
| Min. Bending Radius | 5 x cable diameter |
| Flexible conductor | class 5 |
| Minimum service temperature | -40°C(Fixed) |
| Meter by meter marking | yes |
| Flame non-propagation | yes |
| Outdoor installation | permanent |
| Water resistance | AD3 sprays |
| Chemical & Oil resistance | acceptable |
| No fire propagation | Yes |
| Electric fields resistant | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Environmentally friendly | Yes |
| Mechanical stress impac | AG3. High severity |
| Max. Temperature (service) | 90°C |
