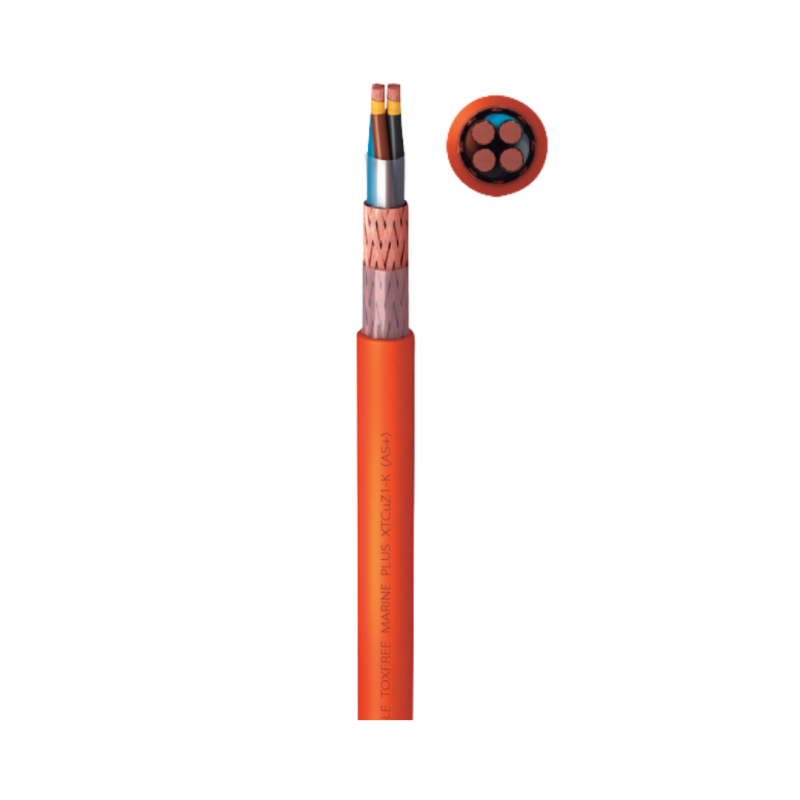

XTCuZ1-K(AS+) MARINE ARMOURED AND FIRE RESISTANT POWER CABLE
- Product Code: XTCuZ1-K(AS+)
The Toxfree Marine Plus XTCuZ1-K (AS+) is specially designed to transmit electric power in the presence of fire, assuring electric supply to emergency circuits, like signaling lights, smoke extractors, acustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places and marine applications.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation
Mica Tape + LSZH XLPE 90ºC.
The standard identification is the following:
1 x ...................................... Black
2 x ...................................... Blue + Brown
3 x ...................................... Brown + Black + Grey
4 x ...................................... Blue + Brown + Black + Grey
5 or more conductors ...... White with black numbers
Armour bedding
Halogen free barrier. Polyester tape.
Armour
Copper braid screen.
Outer sheath
LSZH polyolephine outer sheath SHF1 type. Orange colour, non-toxic, fire retar-dant and fire resistant.
| Min. Bending Radius | 5 x cable diameter |
| Max. Temperature (short-circuit) | 250ºC (maximum 5 s) |
| Flexible conductor | class 5 |
| Minimum service temperature | -40°C(Fixed) |
| Meter by meter marking | yes |
| Flame non-propagation | yes |
| Outdoor installation | permanent |
| Water resistance | AD3 sprays |
| Chemical & Oil resistance | acceptable |
| No fire propagation | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Environmentally friendly | Yes |
| Mechanical stress impac | AG3. High severity |
| Max. Temperature (service) | 90°C |
