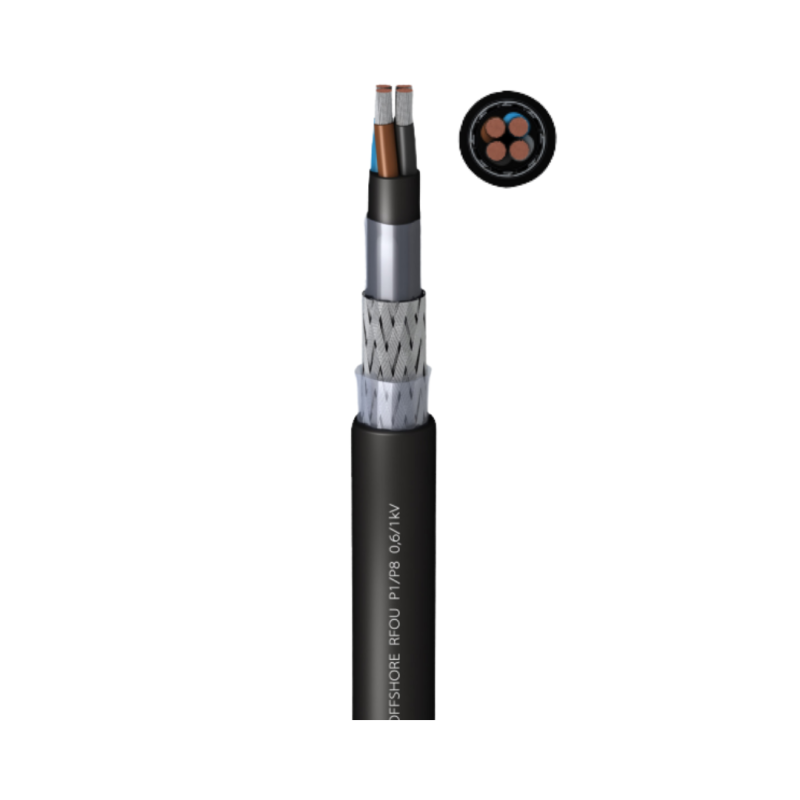

RFOU P1/P8 Offshore power 0,6/ 1kV
- Product Code: RFOU P1,P8
RFOU P1/P8 is used in fixed installations for control, instrumentation and tele-communication in both explosion and safe areas, in emergency and critical sys-tems. The cable is also used for installations in areas exposed to mud and drilling or cleaning fluids.
Conductor
Class 5 tinned copper, based on IEC 60228.
Insulation
Ethylene propylene rubber (EPR)
The standard identification is the following:
1 conductor...............black
2 conductors...............blue + brown
3 conductors...............brown + black + grey
4 conductors...............brown + black + grey + blue
5 or more conductors...............white numbered
Outer sheath
Mud resistant thermosetting compound, black colour, low smoke and halogen free, type SHF MUD.
| UV Resistant | yes |
| Outdoor installation | permanent |
| Water resistance | AD4 sprays |
| Chemical & Oil resistance | excellent |
| No fire propagation | -40°C(Fixed) |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Mechanical stress impac | AG3. High severity |
| Mud resistance | NEK TS 606 |
| Max. Temperature (service) | 90°C |
