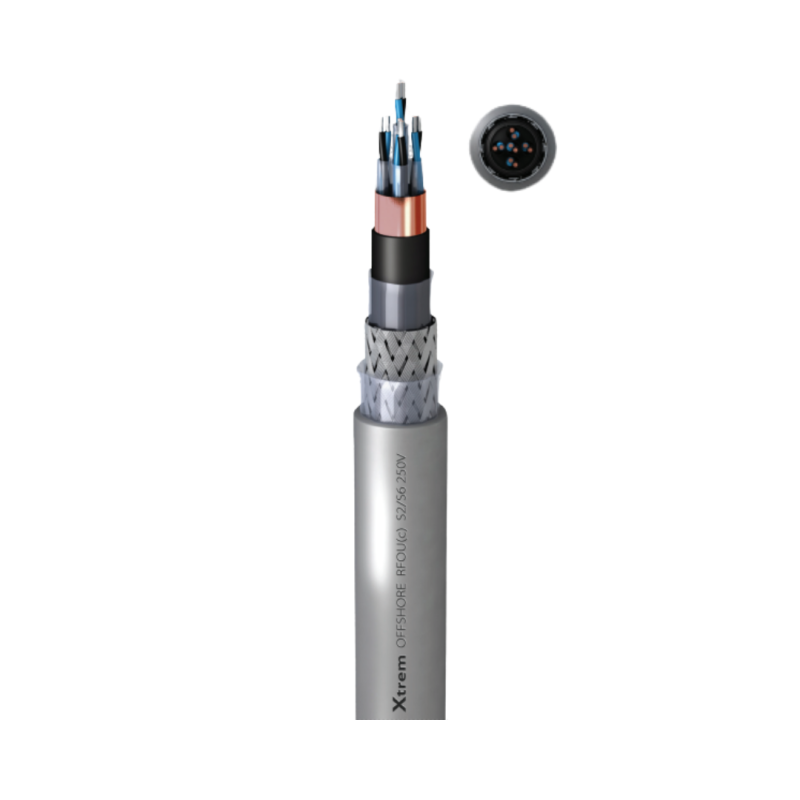

RFOU(c) S2/S6 Offshore instrumentation 250 V individually screened
- Product Code: RFOU(C) S2,S6
RFOU(C) S2/56 is used in fixed installations for control, instrumentation and te-lecommunication in both explosion and safe areas, in emergency and critical sys-tems. The cable is also used for installations in areas exposed to mud and drilling or cleaning fluids.
Conductor
Circular tinned stranded Cu, class 2.
Insulation
Ethylene propylene rubber (EPR)
Screen
Common screen: Pair/triple are laid up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are identified by printed numbers on insulated conductors.
Armour
Tinned annealed copper wire braid.
Filling sheath
Flame retardant and halogen free compound
Outer sheath
Mud resistant thermosetting compound, black colour, low smoke and halogen free, type SHF MUD.
| UV Resistant | yes |
| Outdoor installation | permanent |
| Water resistance | AD4 sprays |
| Chemical & Oil resistance | excellent |
| No fire propagation | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Mechanical stress impac | AG3. High severity |
| Mud resistance | NEK TS 606 |
| Max. Temperature (service) | 90°C |
