RFOU MV Offshore power medium voltage
- Product Code: RFOU-MV

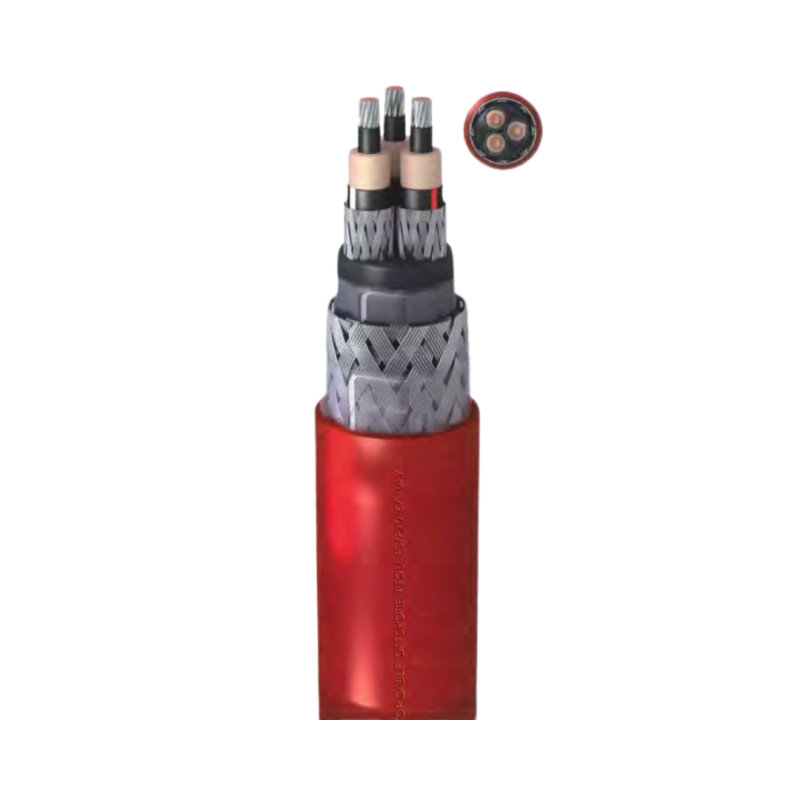

Offshore power Medium Voltage cables. Medium voltage heavy duty, mud resistant cables for offshore applications. Halogen free, flame and fire non propagator. Excellent resistan-ce to oils, abrasion, petrochemical fluids, moisture and salt water. Based on IEC 60092-354 and NEK TS 606. Suitable for fixed installations in vessels and oil rigs.
Conductor
Class 2 tinned copper, based on IEC 60228 (class 5 also available upon request).
Semiconducting
Semiconducting halogen free compound.
Insulation
Halogen Free Ethylene propylene, type EPR according to IEC 60092-351.
Insulation screen
Semiconducting halogen free compound + tinned copper wire braid.
The standard identification is the following:
1 conductor.................Natural
3 conductors.................off-white black + red (other colors available as option)
Inner sheath
Halogen Free compound.
Braid/Armour
Tinned copper wires braid.
Outer sheath
Mud resistant thermosetting compound, red colour, low smoke and halogen free, type SHF MUD.
| Min. Bending Radius | 15 x cable diameter |
| Max. Temperature (short-circuit) | 250°C(maximum 5s) |
| Flexible conductor | class 5 |
| Minimum service temperature | -fixed -40°C -mobile -25°C |
| Meter by meter marking | Yes |
| Flame non-propagation | Yes |
| Outdoor installation | permanent |
| Water resistance | AD4 sprays |
| Chemical & Oil resistance | excellent |
| No fire propagation | Yes |
| LSZH | Yes |
| Low smoke emission | Light transmittance > 60% |
| Low corrosive gases emission | Yes |
| Mechanical stress impac | AG3.High severity |
| Mud resistance | NEK TS 606 |
| Max. Temperature (service) | 90°C |
