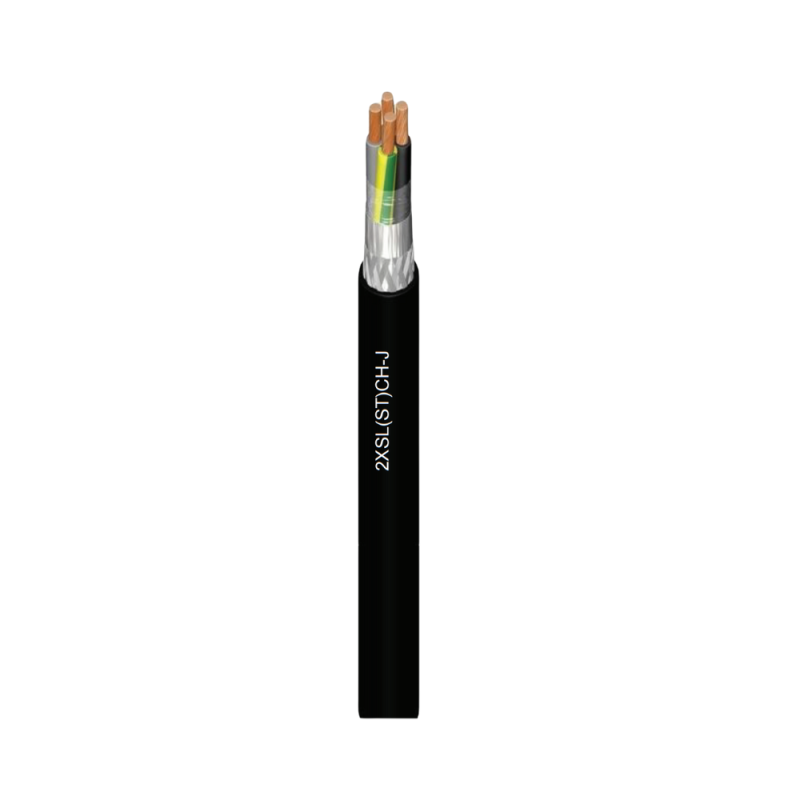

2XSL(ST)CH-J LSHF-FR-UV VFD EMC LOW SMOKE HALOGEN-FREE
- Product Code: 2XSL(ST)CH-J
Cables with special construction, used to supply power to motors from frequency converters while maintaining full electromagnetic compatibility (EMC). The XLPE insulation improves current carrying capacity maintaining at the same time low capacitance in comparison to PVC insulated cables. The cables are suitable for both fixed installation and flexible connections in industrial equipment, process lines, and machines operating in dry and damp rooms. The entire cable is made of halogen-free materials and does not emit noxious substances under fire conditions.
Conductor
Plain Annealed Copper Wire Class 5
IEC 228 - BS 6360
Insulation
Cross-Linked Polyethylene (XLPE)
Core Identification
Black, brown, grey, green-yellow
Filler
PP Yarn or PVC Filler (Optional)
Screens
Electrostatic screen made of aluminium backed polyester tape and a second screen made of tinned copper wire braid with coverage ≥ 85%
Outer Sheath
Low smoke halogen free compound (LSHF-UV Resistant), Black
Flame Retardant
IEC 60332-1
Flame Propagation
IEC 60332-3 Cat.C
| Nominal Voltage | 600/1000V |
| Insulation Resistance | At 20°C 5000Mohm/km` |
| Test Voltage | 4000V 5 min |
| UV Resistant | yes |
| Spark Test | 5000V |
| Min. Bending Radius | 5 x O.D (Fixed) | 10 x O.D (Mobile) |
| Temperature Rating | 80°C |
